Battery chnageable TF1 battery

TF 1 Battery User Manual

Parameter

Color: black, white, pink, titanium, silver, red, green, purple and blue

Capacity: 700mah/900mah/1000mah/2000mah

Thread Type: 510 Thread & EGO Thread

How to use

Power on and off: Press the button for 5 times in quick succession, the button light will flash 5 times to indicate TF 1 battery is ready for use. In the same way, TF 1 battery will be powered off after 5 presses.

Vaping: Press the button and inhale or vape. When the button is held down, the button light will be on.

Charging: Simply charge TF 1 by connecting it with a computer or a wall adapter via USB charger. When it’s fully charged, the button light will go out.

How to charge

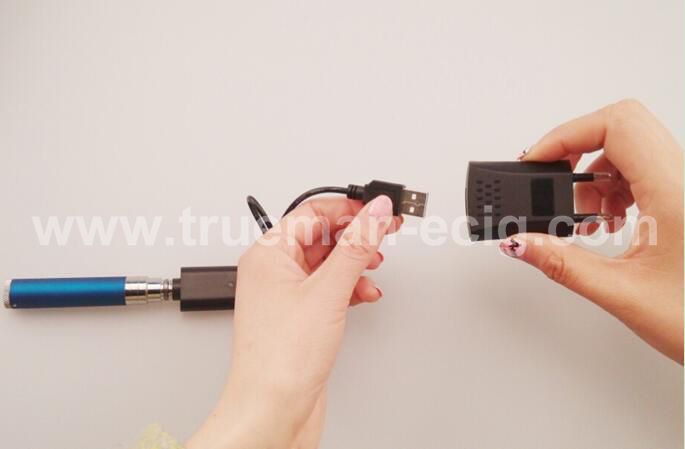

1. A. Please take off the atomizer and screw the ego usb charger onto the battery, then connect the usb charger with wall plug, and charging. see the below pictures:

B. Please take off the battery cap and take out the inner battery cell, then put the inner battery onto wall charger, and charging, see the below pictures:

2. Colors of led:

Usb charger led:

    When charging, it will turn red; When fully charged, it will turn green.

TF 1 battery button led:

* When charging, the led will lash 3times, and become red.

* When the battery is around fully powered, the led of red and blue colors will flash  alternatively for several minutes.

   * When the battery is fully powered, the led will flash 20times, then turn red to green.

Functions:

Short circuit protection:

1. When the battery power is low, TF 1 battery will stop functioning. Please charge the battery to reactivate.

2. When the short circuit occurs before working, the led light flashes 5 times and then powers off.

3. When the short circuit occurs while working, the led light flashes 3 times before short circuit (reset).

Atomizer protection: TF 1 battery has a 10 seconds run time protection. The light will flash 10 times if the button is pressed for more than 10 seconds.

Low voltage protection: When the battery voltage is less than 3.3V, the button light flashes for 10 times and the device power-off. Press the button can not power on.
